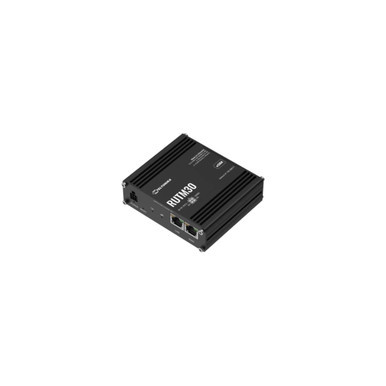

Compact 5G Connectivity with Dual SIM and Industrial Design
This rugged 5G router delivers ultra-fast, low-latency mobile internet in a compact form, engineered for industrial, vehicular, and remote deployments. Equipped with dual SIM slots and eSIM support, it provides seamless failover and advanced SIM-switching logic based on signal, usage, or roaming status. The router supports up to 867 Mbps over dual-band Wi-Fi, secure VPN protocols, remote monitoring, and offers extensive firewall and network management tools. With passive PoE, configurable I/O, and wide temperature range operation, it ensures reliable connectivity in critical environments.
Key Features
- 5G Sub-6 GHz mobile connectivity: Supports speeds up to 3.4 Gbps downlink and 900 Mbps uplink with 4x4 MIMO.
- Dual SIM and eSIM failover: Enables smart switching between SIMs based on network conditions or policy rules.
- Advanced wireless features: Offers dual-band Wi-Fi 5 (802.11ac Wave 2) with up to 867 Mbps and support for 150 users.
- Industrial-grade build: Compact aluminium housing with DIN rail mounting, rated for -40 °C to 75 °C operation.
- Robust VPN support: Includes WireGuard, OpenVPN, IPsec, ZeroTier, Tailscale and more for secure remote access.
- IoT-ready integration: Compatible with Azure IoT Hub, AWS IoT Core, Cumulocity, and MODBUS/DNP3 protocols.
- Extensive firewall and security: Includes DDOS protection, web filtering, VLAN, and flexible access control.
- Remote management: Supports RMS, SNMP, MQTT, TR-069, and custom API for large-scale deployments.
Designed for speed, redundancy, and reliability, this router supports the most demanding connectivity scenarios with industrial toughness.
| Product Specifications | |
|---|---|
| Mobile Network Support | 5G Sub-6 GHz, 4G LTE Cat 19, 3G |
| SIM Support | 2 × Mini SIM (2FF), 1 × eSIM |
| Wi-Fi Standard | 802.11b/g/n/ac Wave 2 (Wi-Fi 5) |
| Wi-Fi Speed | Up to 867 Mbps |
| Wi-Fi Connections | Up to 150 users |
| Ethernet Ports | 1 × WAN, 1 × LAN (10/100/1000 Mbps) |
| Power Input | 9–50 VDC, Passive PoE support |
| Power Consumption | Idle: 3.9 W, Max: 9 W |
| Operating Temperature | -40 °C to 75 °C |
| Housing Material | Anodised aluminium |
| Ingress Protection | IP30 |
| VPN Protocols Supported | WireGuard, OpenVPN, IPsec, SSTP, DMVPN, ZeroTier, Tailscale |
| I/O Interfaces | 2 × Configurable Digital I/O |
| Dimensions (W × H × D) | 100 × 30 × 93.7 mm |
| Weight | 319 g |
| Mounting Options | DIN rail, wall, flat surface (kit required) |
| Management Options | Web UI, SSH, RMS, SNMP, MQTT, TR-069 |
| Certifications | CE, UKCA, CB, EAC, RCM, WEEE |
