Simplify Outdoor Connectivity with Flexible, Power-Efficient Wireless Bridging

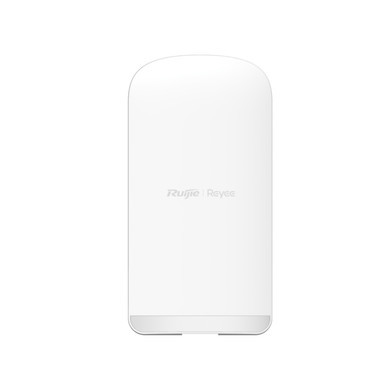

The RG-EST330F-P is a 5 GHz wireless bridge designed for point-to-point and point-to-multipoint connections up to 3 km. It features a 13 dBi directional antenna and supports up to 867 Mbps throughput using 2x2 MIMO technology. With three Fast Ethernet ports, including two PoE-out ports, it can power connected devices directly. The bridge offers versatile power options—12 V DC, passive PoE, or 802.3af/at—ensuring flexible deployment. Its IP54-rated enclosure and operating temperature range of -30°C to +65°C make it suitable for various outdoor environments.
Key Features
- Long-Range Connectivity: Supports stable wireless links up to 3 km for reliable data transmission.
- High-Speed Performance: Delivers up to 867 Mbps throughput on the 5 GHz band with 2x2 MIMO.
- Integrated PoE-Out Ports: Two PoE-out ports allow direct powering of connected devices, reducing cabling needs.
- Versatile Power Supply: Compatible with 12 V DC, passive PoE, and 802.3af/at standards for flexible installation.
- Robust Outdoor Design: IP54-rated enclosure withstands harsh weather conditions, ensuring durability.
- Easy Deployment: Factory-paired units enable plug-and-play setup without complex configuration.
- Advanced Networking: Supports TDMA and Self-Organizing Network (SON) for efficient data transmission.
- Cloud Management: Compatible with Ruijie Cloud for remote monitoring and maintenance.
Ideal for extending networks in campuses, industrial sites, or rural areas where wired connections are impractical.
| Wireless Specifications | |
|---|---|
| Frequency Bands | 2.4 GHz and 5 GHz |
| Wireless Standards | 802.11a/n/ac (5 GHz), 802.11b/g/n (2.4 GHz) |
| Max Data Rate | 867 Mbps (5 GHz), 150 Mbps (2.4 GHz) |
| Modulation | BPSK to 256-QAM |
| Transmit Power | 26 dBm (5 GHz), 20 dBm (2.4 GHz) |
| Receiver Sensitivity | -91 dBm to -51 dBm (varies by modulation) |
| Hardware Features | |
| Ethernet Ports | 3 x 10/100 Mbps (2 x PoE-out) |
| Power Options | 12 V DC, Passive PoE, 802.3af/at |
| Power Consumption | <12 W |
| LED Indicators | System, Port, Signal Strength |
| Reset Button | Yes |
| Antenna & Coverage | |
| Antenna Type | Built-in directional |
| Antenna Gain | 13 dBi (5 GHz), 2 dBi (2.4 GHz) |
| Beamwidth | 120° horizontal, 13° vertical |
| Maximum Distance | Up to 3 km |
| Environmental | |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% (non-condensing) |
| IP Rating | IP54 |
| Physical | |
| Dimensions | 355 x 124 x 48 mm |
| Weight | 0.83 kg |
| Mounting | Pole and wall mountable |
