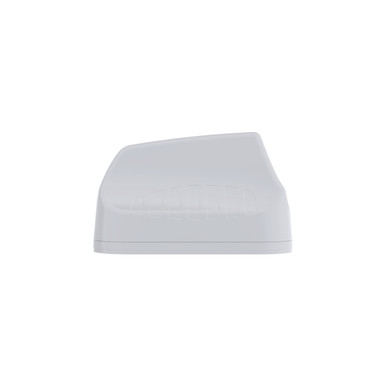

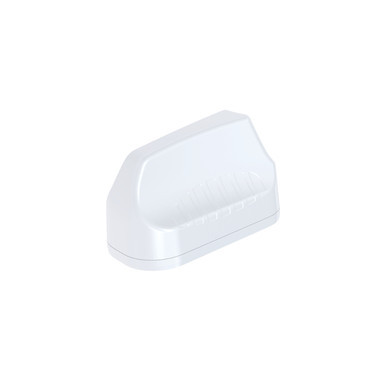

The Poynting MIMO-3-17, 7-in-1 Transportation & Automotive Antenna, is the ultimate solution for amplifying connectivity on the go. Designed to cater to the diverse needs of transportation and automotive applications, this cutting-edge antenna delivers exceptional performance across a wide frequency range from 410 to 3800 MHz. The MIMO-3-17 is a 7-in-1 high-performance multi-frequency antenna within a single housing, providing four cellular, two Wi-Fi, and a GPS/GLONASS antenna.
Two separate dual-band Wi-Fi antennas, provide concurrent 2.4 GHz and 5 GHz on each antenna with 2×2 MIMO capability. The seventh antenna is a high-performance active GPS/GLONASS system operating down to -40°C.
The main applications are for commercial/industrial vehicles, marine, M2M, and other IoT systems using a wide range of radio technologies while remaining futureproof over the wide frequency band.
Features:
- 7-in-1 High performance multi-frequency 2G/3G/4G/LTE/5G antenna
- 4X4 MIMO LTE, 2X2 MIMO Wi-Fi & GPS / GLONASS
- Ultra-wideband includes 450 MHz and 3.5 GHz CBRS bands
- Robust and water-resistant antenna (IP 69K)
- Ideal for transportation and marine use
- Multi-mounting options for easy installation
| Specification | Description |
|---|---|
| Industry (Application) | Commercial & Industrial Antennas, Transportation & Mobility Antennas |
| Technology | Cellular (LTE/2G/3G/4G/CBRS/5G), CDMA450/LTE-M 450, GPS/GLONASS, Wi-Fi |
| Frequency Band | 410-450MHz, 433MHz, 450-470MHz, 617-698MHz, 698-803MHz, 791-894MHz, 868-915MHz, 880-960MHz, 1427-1517MHz, 1700-1900MHz, 1900-2200MHz, 2300-2400MHz, 2400-2500MHz, 2500-2700MHz, 3400-3800MHz, 5000-6000MHz |
| Frequency Range | 410 – 3800 MHz |
| Gain | 6.2dBi (LTE), 7dBi (Wi-Fi), 21dBi (GPS) |
| 5G Bands | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n31, n34, n38, n39, n40, n41, n48, n51, n53, n65, n66, n67, n71, n72, n74, n75, n76, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n106, n256 |
| Directionality | Omni-Directional |
| LTE/4G Bands | B1, B2, B3, B4, B5, B7, B8, B9, B10, B12, B13, B14, B17, B18, B19, B20, B25, B26, B27, B28, B29, B30, B31, B33, B34, B35, B36, B37, B38, B39, B40, B41, B44, B53, B65, B66, B67, B68, B69, B71, B72, B73, B74, B85, B87, B88, B103, B106 |
| Mounting Type | Magnetic Mount, Spigot Mount, Surface/Desk Mount |
| Wi-Fi Standard | Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Connectors | SMA |
| MIMO | 2×2, 4×4 |
| Polarisation | Linear Polarised |
| Environmental | IP69K |
| Enclosure Name | Badger |
| Enclosure Size | Medium |
| LTE Ports | 4 |
| Wi-Fi Ports | 2 |
| GNSS/GPS Ports | 1 |
