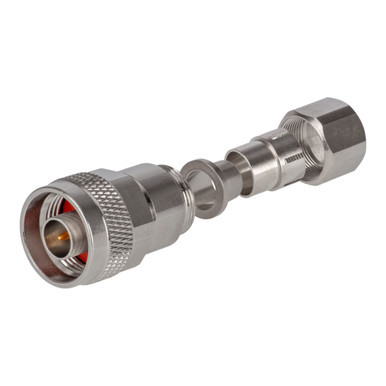

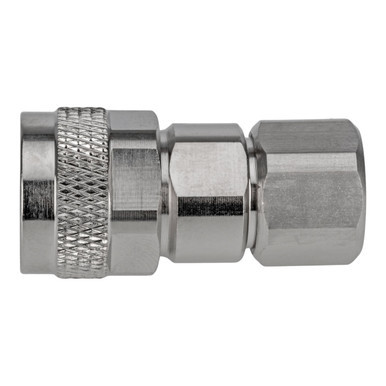

The Powertec Crimp N Male for LMR400 with Hex Nut is a reliable and efficient solution for your coaxial cable termination needs. This connector is engineered to provide a secure and stable connection, making it ideal for various RF setups.
Durable and High-Quality Construction
-
- Inner Conductor: Brass with Gold-Plated finish for optimal conductivity and corrosion resistance.
- Insulator: High-grade PTFE, known for its excellent dielectric properties.
- Body: Constructed from robust Brass with a Ternary Alloy for enhanced durability.
- Gaskets: Made from Silicone Rubber to provide a secure and long-lasting seal.
- Additional Components: Brass with Ternary Alloy ensuring overall structural integrity.
| Specification Category | Details |
|---|---|
| Inner Conductor | Brass, Gold-Plated |
| Insulator | PTFE |
| Body | Brass, Ternary Alloy |
| Gaskets | Silicone Rubber |
| Other Components | Brass, Ternary Alloy |
| Interface | N male |
| Standards | IEC 61169, IEC 60169 |
| Body Style | Straight |
| Durability | ≥ 500 mating cycles |
| Cable Compatibility | LMR-400 |
| Impedance | 50Ω |
| Operating Frequency Band | DC-3GHz |
| Insertion Loss (Typical) | ≤0.05√f dB Max |
| VSWR | ≤1.30 |
| Dielectric Withstanding Voltage | 1000V |
| Contact Resistance (Inner Conductor) | ≤1.0mΩ |
| Contact Resistance (Outer Conductor) | ≤0.25mΩ |
| Insulation Resistance | ≥5000MΩ |
| Operating Temperature | -40°C to +85°C |
| Corrosion Test Method | IEC 60068-2-52, 48h |
| Damp Heat Resistance Test Method | IEC 61169-1, Sub-clause 9.4.3 |
| Thermal Shock Test Method | IEC 61169-1, Sub-clause 9.4.4 |
| Vibration Test Method | IEC 61169-1, Sub-clause 9.3.3 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
| Marking and Packaging | According to packaging specifications or customer requirements |
| Compliance | RoHS 2011/65/EU compliant by exemption |
