The Powertec 4G-5G LPDA Antenna, 698 to 4000 MHz, N Female + 10m Cable N Male to SMA Male delivers exceptional performance across a wide frequency range. This wideband coverage ensures compatibility with various cellular bands, including 4G LTE and 5G NR, making it a versatile choice for diverse network requirements.
Key Features:
- Fully welded, powder coat aluminium design
- 11.3 dBi peak gain across lower bands 698 to 960 MHz
- 11.5 dBi peak gain across bands 1695 to 2700 MHz
- 9.5 dBi gain across upper bands 3300 to 4000 MHz
- Stainless steel mounting clamp included
Advanced Log Periodic Design
Featuring a Log Periodic Dipole Array (LPDA) design, this antenna provides outstanding gain and efficiency across its operating range. The LPDA design allows for effective phase matching of elements, resulting in high gain and reliable performance throughout the entire frequency spectrum.
High Gain for Enhanced Signal
The LPDA Antenna boasts impressive peak gain values ranging from 9.5 dBi to 11.5 dBi, depending on the frequency band. This high gain ensures maximum signal capture and transmission, improving connectivity and reducing dropouts in areas with weak signal strength.
Durable Construction
Engineered for rugged conditions, the antenna is constructed from powder-coated aluminium and includes a stainless steel mounting clamp. This robust build ensures durability and reliability, even in harsh environmental conditions.
Comprehensive Connectivity
The antenna comes with a 10-metre RG-142 cable, pre-terminated with an N Female to SMA Male connector. This extended cable length allows for flexible installation and easy integration with various cellular devices and repeaters.

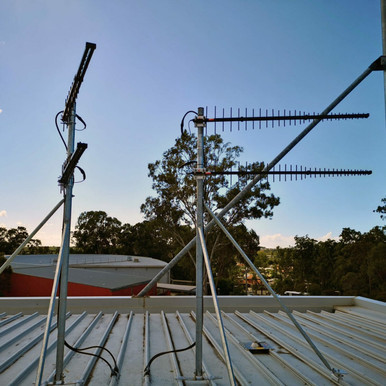

Flexible Installation Options
With dimensions of 1240 × 200 × 60 mm and a weight of 2.2 kg, the Powertec LPDA Antenna is designed for easy mounting on poles with diameters ranging from 30 to 50 mm. Its practical design facilitates straightforward installation and adjustment.
Optimised Beamwidth and Polarisation
The antenna provides a vertical polarisation with a beam width ranging from 34° to 60° depending on the frequency band. This optimised beam width allows for effective signal capture and transmission, accommodating both direct and reflected signals for improved network performance.
| Category | Specification | Details |
|---|---|---|
| Model Number | LLP-6940-12.N2 | Powertec 4G-5G LPDA Antenna |
| Frequency Range | 698 to 4000 MHz | Wideband coverage for multiple networks |
| Gain | 11.1 dBi (698-803 MHz) | Lower frequency band |
| 11.3 dBi (803-960 MHz) | Mid-frequency band | |
| 11.5 dBi (1695-2200 MHz) | High frequency band | |
| 10.7 dBi (2200-2700 MHz) | Higher frequency band | |
| 9.5 dBi (3300-4000 MHz) | Very high frequency band | |
| VSWR | ≤ 1.8:1 (698-2200 MHz) | Efficient signal transmission across most bands |
| ≤ 1.6:1 (3300-4000 MHz) | Better performance at higher frequencies | |
| Polarisation | Vertical | Standard vertical orientation |
| Input Impedance | 50 Ω | Standard impedance for antennas |
| Max Input Power | 50 W | High power handling capacity |
| Connector | N Female | Standard connector option |
| Cable Series | RG-142 | High-performance cable |
| Cable Length | 300 mm | - |
| Dimensions | 1240 × 200 × 60 mm | Length x Width x Height |
| Weight | 2.2 kg | - |
| Construction Material | Aluminium | Durable and weather-resistant |
| Radome Colour | Black Powder coat | - |
| Operating Temperature | -40 °C to +65 °C | Suitable for a wide range of temperatures |
| Mounting | Pole mount Ø 30-50 mm | Included mounting clamp |
