The 2J Falcon 4G-5G WiFi Ultraband MIMO + GNSS Adhesive Antenna is designed for MIMO devices operating within 617-5925 MHz frequencies serving 5GNR, 4G LTE, FirstNet, CBRS, LPWA, CAT-x, CAT-Mx, CAT-NBx, NB-IoT, 3G, 2G,CDMA as well as GPS/QZSS/Galileo GNSS standards. The low-profile compact design and high-quality adhesive mount make this antenna an ideal solution for outdoor applications with quick and easy installation on a wide range of surfaces.
FEATURES:
- 3-in-1 Combination Antenna
- Ultra Wide band Antenna
- 617-5925 MHz Sub 6GHz Bands
- Full 4GLTE backward compatibility
- Ground Plane Independent
- 4.9 dBi 5G NR Peak Gain
- Active GNSS Antenna
- 28 dB GNSS Active Gain
- Pre-Filter GNSS
- GNSS Voltage Range 1.5 - 3.6 V
- Low Profile
- Customisable Cable and Connector

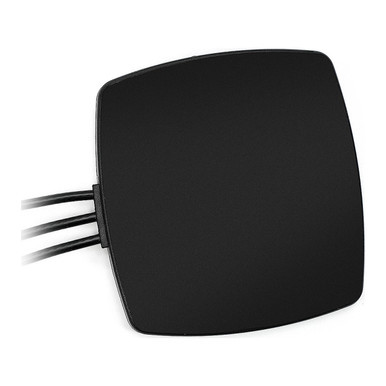

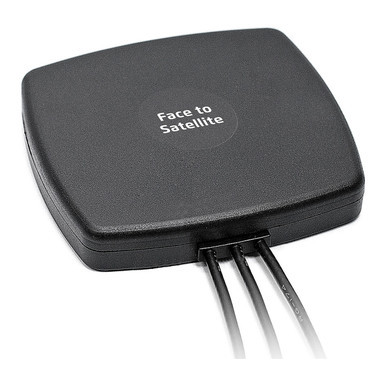

2J Falcon 4G-5G WiFi Ultraband MIMO + GNSS Adhesive Antenna (2J6084PGFa)
The 2J6084PGFa housing is IP67 certified and manufactured from black or white ABS / UV stable material offering exceptional durability at a low cost for maximum protection from extreme outdoor applications. Cable 1 and 2 come with standard SMA-Male connector and 300 cm long DACAR302 Coaxial cable, a popular choice for automotive applications due to its environmental properties, best coupling resistance and stable impedance. Cable 3 comes with standard SMA-Male connector and 300 cm long LMR100 Low Loss Coaxial cable offering an economical solution with excellent performance for short antenna runs. With a compact design (80 x 76 x 16 mm), ground plane independence and high-grade adhesive mounting allow for easy installation on any non-metal surfaces. 2J Antennas supports the health of our environment and manufactures all our products without hazardous materials making us fully RoHS compliant.
